MODEL 520 DIGITAL
INDICATOR:
Ideal for Process weighing applications, the 520 is available with Analog output, Ethernet 10, Ethernet 10/100, Device Net, Allen Bradley Remote I/O or Profibus output options. The 520 is designed for mounting in an existing or new control panel taking limited panel space. Large .75" display digits make this indicator easy to read from a distance. Digital inputs and outputs provide greater flexibility in control schemes.
|
SPECIFICATIONS:
- Load Resistance: 1K ohm max.
- Current Output: 4-20 ma.
- Ext. Loop Res.: 500 Ohm max.
- DIGITAL FILTERS: 3 Filters Software selectable
- A/D RATES TO 120 / SECOND
- EDP PORT: Full Duplex RS-232 or RS-485
- DIGITAL INPUTS: 3 , TTL or Switch
- DIGITAL OUTPUTS: 4 , TTL pullup 40 V
- MILLIVOLT CALIBRATION
- GRAVITATIONAL COMPENSATION
- DISPLAY: 0.75" - 7 Digit Blue VFD
- KEYBOARD: 5 - key flat membrane panel
- OPERATING TEMPERATURE: 14 - 104 degrees F. Legal, INDUSTRIAL: to 122 degrees F.
- Panel Mount : Standard Nema 4X
- APPROVALS: NTEP CC# 97-130A1
- WEIGHT: 6 pounds
- WARRANTY: Limited 2 year
Features
|
Order:
|
| 520 Standard |
520-S |
| 520 with Analog Output |
520-PA |
| 520 with Allen Bradley RIO |
520-AB |
| 520 with Device Net |
520-DN |
| 520 with Allen Bradley Ethernet IP |
520-ET1 |
| 520 with Ethernet TCP/IP |
520-ET2 |
| 520 with Profibus |
520-PRO |
 520 Installation Manual
520 Profibus Manual

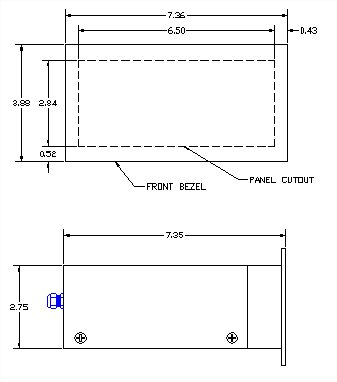

 520 Panel Cutout
|
